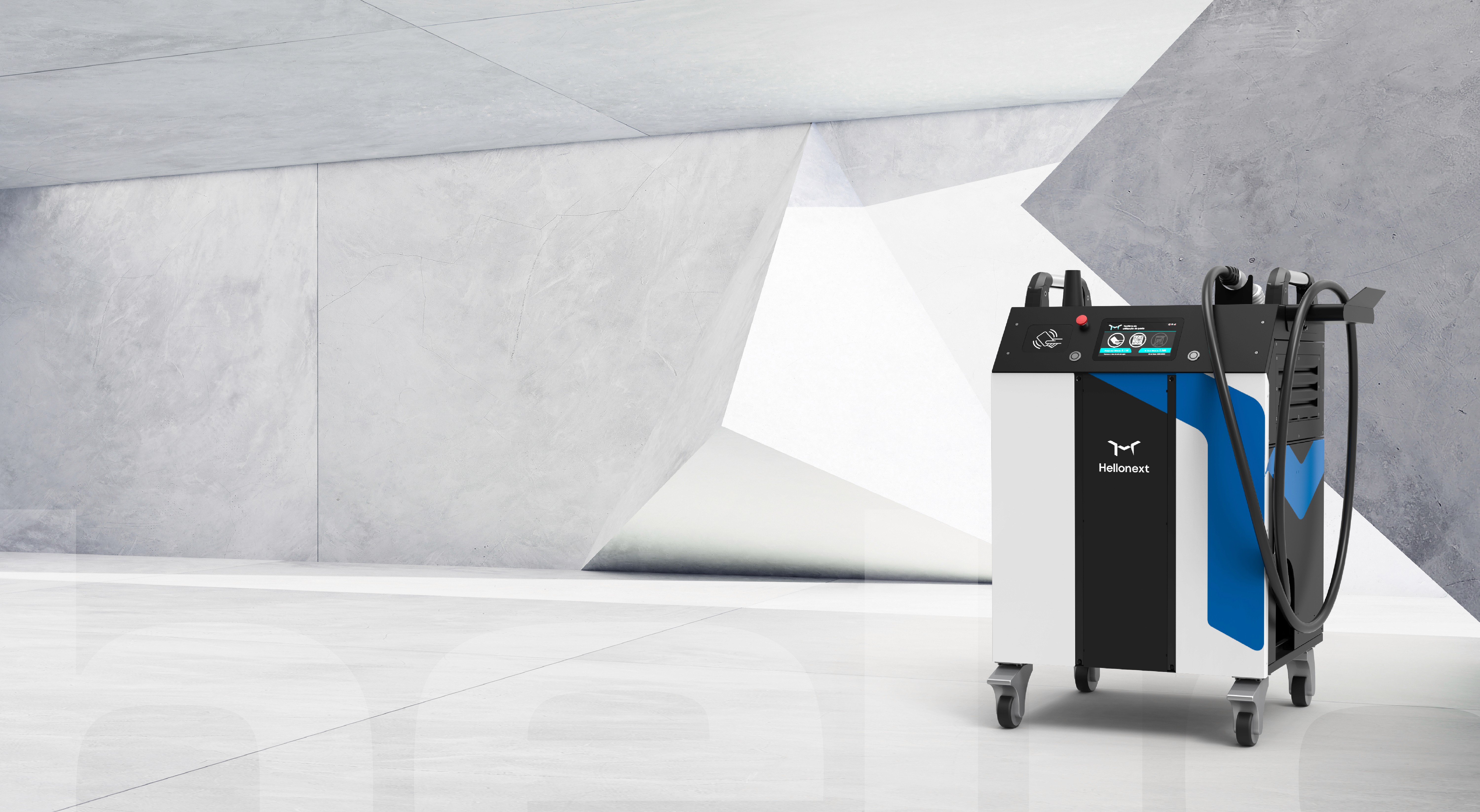

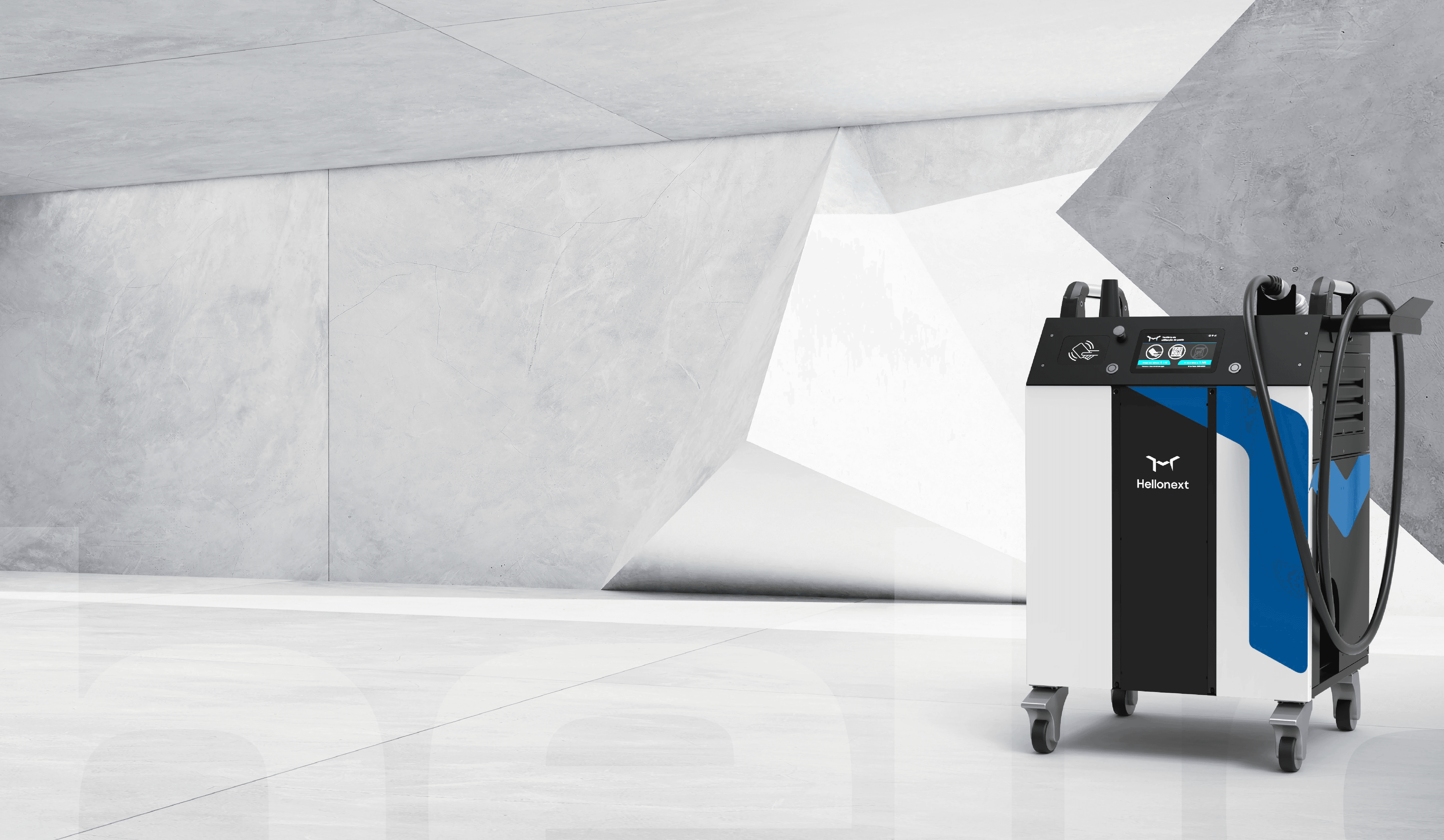

H2 30M – Movable EV Charger

• Single Output Power of 30 kW

• Multi-standard: CCS and CHAdeMO

• Network or standalone operation

• User authentication

• Supports smart charging and load balancing

• Efficiency > 94%

• PF > 0.99 (APFC)

• 7'' LCD screen with user friendly interface

• OCPP 1.6 JSON

• IK10 IP55

• Customization available
Request a Quote

Ideal for service and parking garages – move your EV charger anywhere.



The Hellonext H2 30M fast charger is a movable and highly efficient EV charging solution. With support for multi-standard charging guns, it ensures your operations are up and running at any time. It is flexible and easy to install and maintain.

With network communication capability, the H2 30M is able to connect with remote network systems and provide drivers of electric cars real-time information, such as the location of charging stations, charging progress, and billing information.

With a clear user interface, with multiple function buttons, it ensures all the security certifications. Its solid design is water and dustproof, making it an option for outdoor environments.

General specification

POWER SPECIFICATION - AC Input

  • Input Rating 3Ø_380~415 VAC (± 15%)
  • AC Input Connection 3P+N+PE (Wye configuration) TN/TT/IT
  • Maximum Input Current 3Ø 60A (Typ. ±1%)
  • Frequency50Hz / 60Hz
  • Power Factor>0.99 @ full load
  • Efficiency≥94%

POWER SPECIFICATION - DC Output

  • Output Voltage RangeCHAdeMO: 150~500Vdc / CCS: 150~950Vdc
  • Maximum Output CurrentCHAdeMO / CCS: 60A@500Vdc / CCS: 31.5A@950Vdc
  • Maximum Output Power30kW
  • Voltage Accuracy±2%
  • Current Accuracy ±2%

USER INTERFACE & CONTROL

  • DisplayLCD 7’’
  • Push Buttons Operation buttons / Emergency stop button
  • User Authentication RFID: support ISO 14443A/B, ISO 15693, FeliCa Lite-S (RCS966) OCPP, 2D barcode, APP, Mobile payment

ENVIRONMENT

  • Operating Temperature - 30°C~50° C, power derating from 50° C and above
  • Humidity5%~95% RH, non-condensing
  • Altitude≤ 2000m
  • IP Level IP55/IK10 (not including screen and RFID module)
  • Cooling Method Fan Cooling

COMMUNICATION

  • ExternalEthernet / 4G / Wi-Fi
  • InternalCAN bus / RS485

PROTECTION

  • Input Protection IEC 61851-1, IEC 61851-23, IEC 61851-21-2
  • Output ProtectionCE

REGULATION

  • Certificate
  • Safety
  • Charging Interface

MECHANICAL

  • Dimension (WxDxH) 589 x 490 x 740 mm ±1%
  • Weight≤ 80 kg ±1%
  • Cable Length 3m
